DIY 12V LED Floodlight for Portable Workshop Lighting

A DIY 12V LED floodlight is a practical solution for portable lighting in workshops, outdoor environments, or emergency situations. Commercial LED work lights often rely on proprietary battery systems or limited runtime options, making them less flexible for maker projects. By building your own lighting system, you can customize battery capacity, enclosure design, and electrical safety features according to your specific requirements.

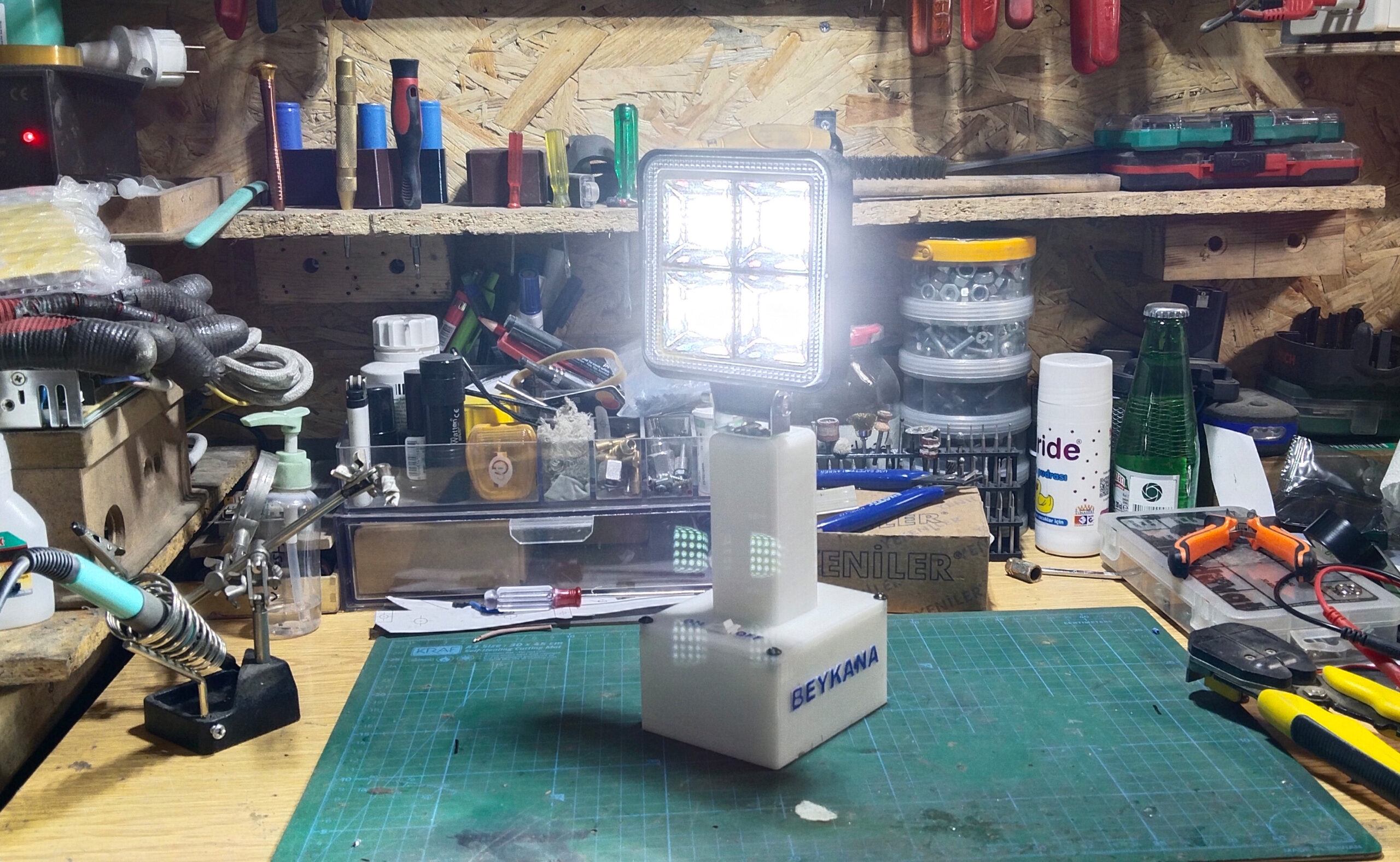

In this project, we combine a 12V LED module with a custom 18650 lithium battery pack and a 3D printed enclosure to create a rechargeable and portable lighting unit. This type of DIY 12V LED floodlight can be used in off-grid environments, mobile workshops, camping setups, or general-purpose maintenance tasks.

Why Build a DIY 12V LED Floodlight?

A DIY 12V LED floodlight offers improved flexibility compared to commercially available lighting systems. Instead of relying on disposable batteries or fixed power sources, you can create a rechargeable solution that delivers consistent illumination over extended periods.

Advantages of a Custom Battery-Powered Floodlight

• Rechargeable lithium-ion battery system
• Adjustable battery capacity
• Lightweight and portable design
• Replaceable battery pack
• 3D printed custom enclosure

Using 18650 lithium-ion cells allows you to balance power output with runtime, depending on how many cells are integrated into the pack.

Custom 18650 Lithium Battery Pack Design

A reliable battery pack is essential for any DIY 12V LED floodlight project. The battery configuration typically involves multiple 18650 cells connected in series to achieve the required voltage output for the LED module.

Proper battery management should include:

• Battery Management System (BMS)
• Short-circuit protection
• Overcharge protection
• Balanced cell discharge

These safety measures improve the lifespan and reliability of your battery-powered lighting system.

3D Printed Enclosure for Floodlight Housing

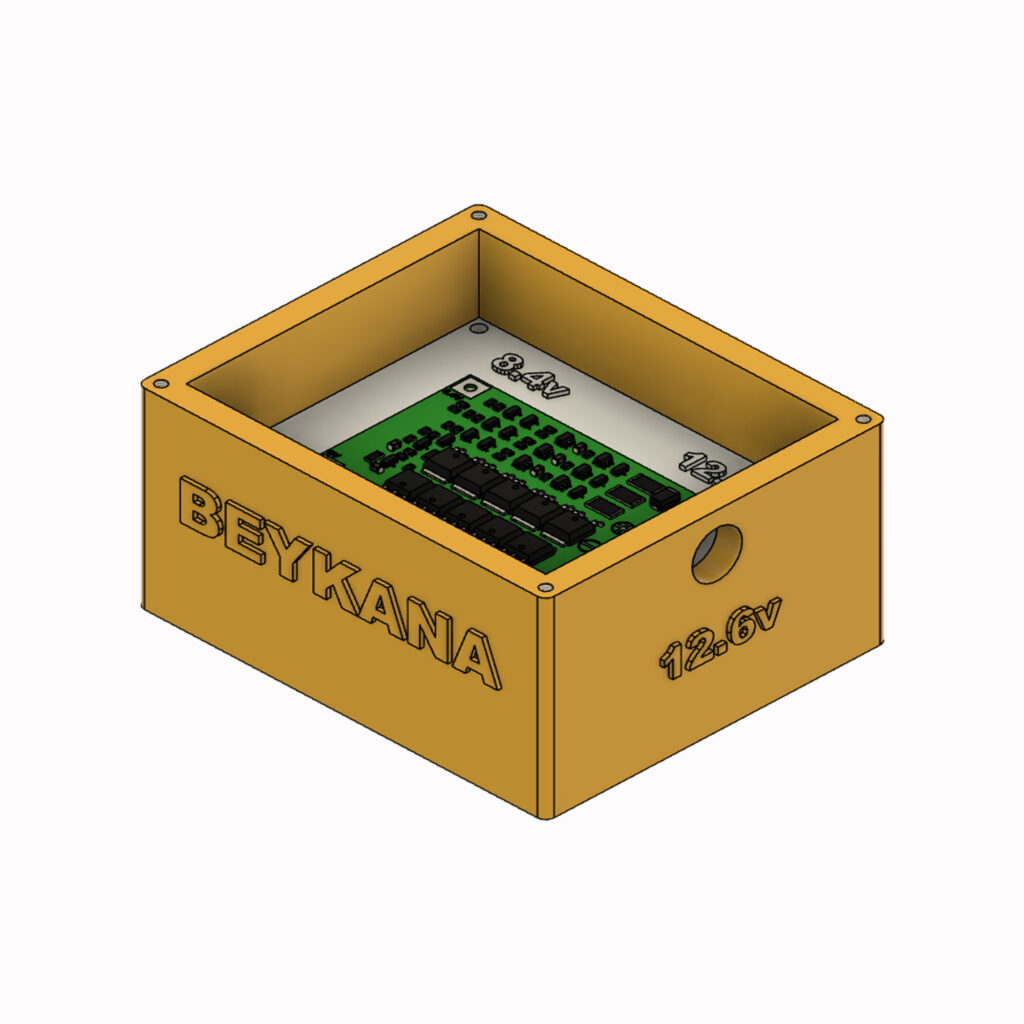

The enclosure used in this build is produced using a 3D printer, allowing full customization of the housing structure. A well-designed enclosure improves heat dissipation and protects internal electrical components from dust or moisture.

Benefits of 3D Printed Housing

• Custom-fit internal components
• Lightweight structure
• Easy modifications
• Improved ventilation design
• Protection for wiring and batteries

A modular enclosure also makes it easier to replace battery packs or upgrade LED modules in the future.

👉 You may also want to read: Create 3D Models with Beykana 3D Scanner

Applications of a DIY 12V LED Floodlight

This type of lighting system can be used in a wide range of applications including:

• Portable workshop lighting
• Outdoor repair tasks
• Camping illumination
• Emergency backup lighting
• Off-grid maintenance work

A DIY 12V LED floodlight provides consistent illumination without requiring direct access to mains electricity.

Electrical Considerations

When designing a portable lighting unit powered by lithium-ion batteries, proper wiring and insulation are critical. Incorrect wiring can lead to short circuits or overheating.

If you would like to learn more about lithium-ion battery safety, you can visit: Wikipedia – Lithium-ion Battery

Integration into Maker Workflows

A DIY 12V LED floodlight can be integrated into many maker projects where reliable lighting is required. Whether you are working on CNC machining, 3D printing, or electronics assembly, having a portable lighting solution can significantly improve workspace visibility.

Additionally, the modular design of the system allows you to expand battery capacity or upgrade the LED module as needed. This ensures that your DIY 12V LED floodlight remains adaptable for future workshop applications.

Additional Usage and Performance Notes

A well-built DIY 12V LED floodlight can significantly improve visibility in low-light workshop environments and outdoor work areas. Because the lighting unit is powered by a rechargeable lithium battery pack, it becomes suitable for mobile repair tasks, field maintenance, and camping applications where stable illumination is required. Over time, upgrading the LED module or expanding battery capacity can further enhance the runtime and brightness of your DIY 12V LED floodlight system. Proper ventilation within the enclosure also helps maintain optimal operating temperature during extended use, ensuring reliable performance in demanding maker and workshop scenarios.

3D Model Download

If you would like to download the 3D enclosure model used in this project, you can access the design files directly from Thingiverse. The complete STL files for the housing are available at the following link: https://www.thingiverse.com/thing:6912415. By downloading the enclosure model, you can easily print the required parts and integrate them into your DIY 12V LED floodlight build without needing to design the housing from scratch.
