Introduction to Mini Cordless Screwdriver Battery Repair
Mini cordless screwdrivers are commonly used in electronics repair, CNC assembly, 3D printer maintenance, and general DIY maker projects due to their lightweight and portable design. However, over time, performance issues such as reduced torque or shorter operating time may occur. In most cases, this problem is caused by battery degradation inside the device.
Instead of purchasing a new tool, performing a Mini Cordless Screwdriver Battery Repair allows you to restore your screwdriver’s functionality in a cost-effective and environmentally friendly way. This repair process involves replacing the internal 3.7V lithium-ion battery with a new one that matches the required specifications.
Why Do Mini Screwdriver Batteries Fail?
Lithium-ion batteries naturally degrade over time due to repeated charging cycles. As internal resistance increases, the battery’s ability to deliver sufficient current decreases. This results in reduced torque output and shorter working duration.
Additional factors that may contribute to battery failure include:
- Overcharging
- Deep discharging
- Excessive heat exposure
- Low-quality internal battery cells
When these issues occur, your screwdriver may fail to operate even after a full charge.
Opening the Screwdriver Safely
Before starting the Mini Cordless Screwdriver Battery Repair process, ensure that the screwdriver is completely powered off and disconnected from any charging source.

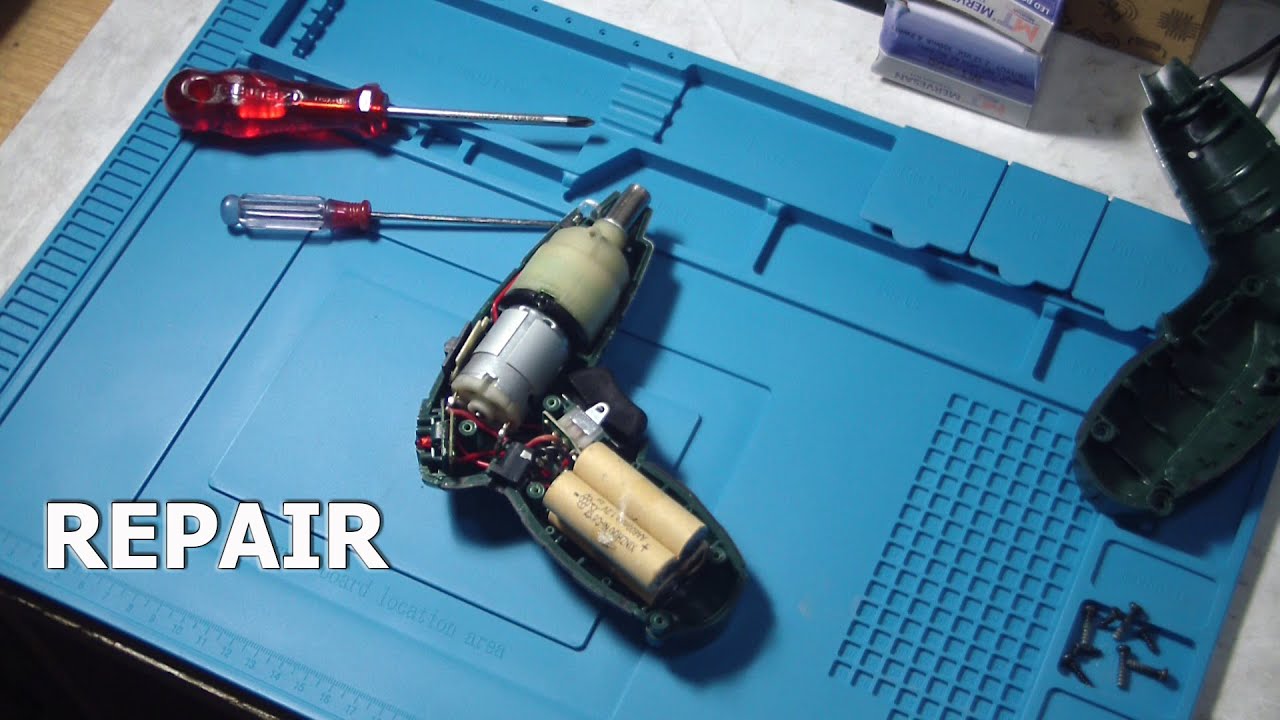

Carefully remove the casing screws and open the housing to expose the internal battery pack and charging circuit board. Take note of the battery polarity and wiring configuration before disconnecting the old battery. This step is critical for ensuring correct installation of the new lithium cell.

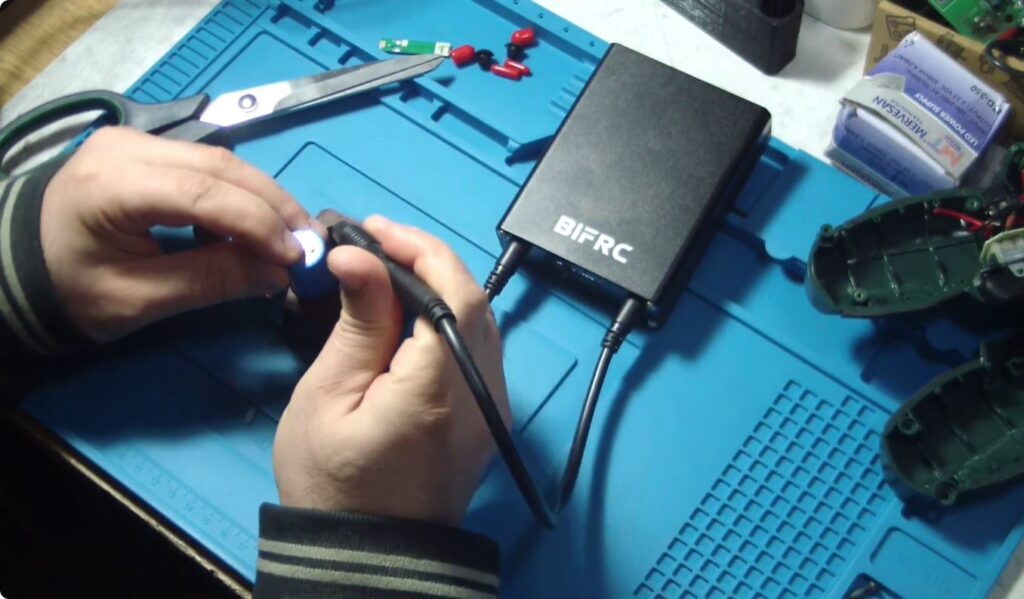

Identifying and Replacing the 3.7V Lithium Battery
Most mini cordless screwdrivers use a single 3.7V lithium-ion battery such as:
- 18650 lithium-ion cell
- 14500 lithium-ion cell
After identifying the battery type, disconnect the faulty battery and prepare the replacement unit. Ensure that the new battery has matching voltage specifications and similar or higher capacity.
Proper soldering techniques should be used to connect the new battery terminals. Double-check the polarity before completing the installation to avoid damaging the internal electronics.
Improving Battery Safety with Protection Circuits
Installing a lithium battery protection circuit module (PCM or BMS) can significantly improve the safety and lifespan of your screwdriver. These modules help prevent:
- Overcharging
- Over-discharging
- Short circuits
- Excessive current draw
If you want to build custom lithium battery packs for similar DIY electronics projects, you may also find our internal guide useful:
👉 https://www.beykana.com/building-a-6s-lithium-battery-pack-with-bms/
Testing the Repaired Screwdriver
After installing the replacement battery, carefully reassemble the screwdriver housing. Perform a charging test before using the device to confirm proper functionality.
If the Mini Cordless Screwdriver Battery Repair has been completed successfully, the screwdriver should regain its original torque capacity and runtime performance. In some cases, using a higher capacity lithium-ion cell may even provide longer working duration between charges.
Video Demonstration of Battery Replacement
Understanding Lithium Battery Safety
Learning how lithium-ion batteries operate is essential when working with portable power tools. Proper handling ensures both safety and long-term performance.
For more technical information about lithium battery safety, you can refer to the following external resource:
👉 https://batteryuniversity.com/article/bu-205-types-of-lithium-ion
Benefits of Repairing Instead of Replacing
Repairing your faulty mini screwdriver offers several advantages:
- Cost savings
- Reduced electronic waste
- Extended device lifespan
- Improved battery performance
- Customizable battery capacity
This repair method aligns perfectly with the Beykana maker philosophy of improving and upgrading existing tools instead of discarding them.
Conclusion
In conclusion, performing a Mini Cordless Screwdriver Battery Repair is a practical and effective solution for restoring the performance of your compact power tools. With basic tools and careful battery handling, you can extend the lifespan of your screwdriver and even enhance its usability for electronics assembly, CNC adjustments, and general DIY applications.
