Introduction
DIY Gear System projects are widely used in maker workshops to control motor speed and increase torque output for mechanical applications. In this build, a fruit juicer motor is repurposed into a functional gear-driven mechanism that allows better power transmission and motion control.
Instead of allowing the motor to rotate freely at high speed, this mechanical setup converts rapid rotation into usable force through a reduction gear assembly.
Understanding Gear Reduction
A properly designed gear reduction mechanism allows the output shaft to rotate at a slower speed while significantly increasing torque. This principle is especially useful when adapting motors taken from home appliances.
The DIY Gear System created in this project relies on this concept to transform the original characteristics of the juicer motor into a more suitable drive unit for mechanical movement and load-bearing tasks.
For a deeper technical explanation of gear ratios and torque multiplication, you can review the following engineering resource:
https://en.wikipedia.org/wiki/Transmission_(mechanical_device)
Assembly Process

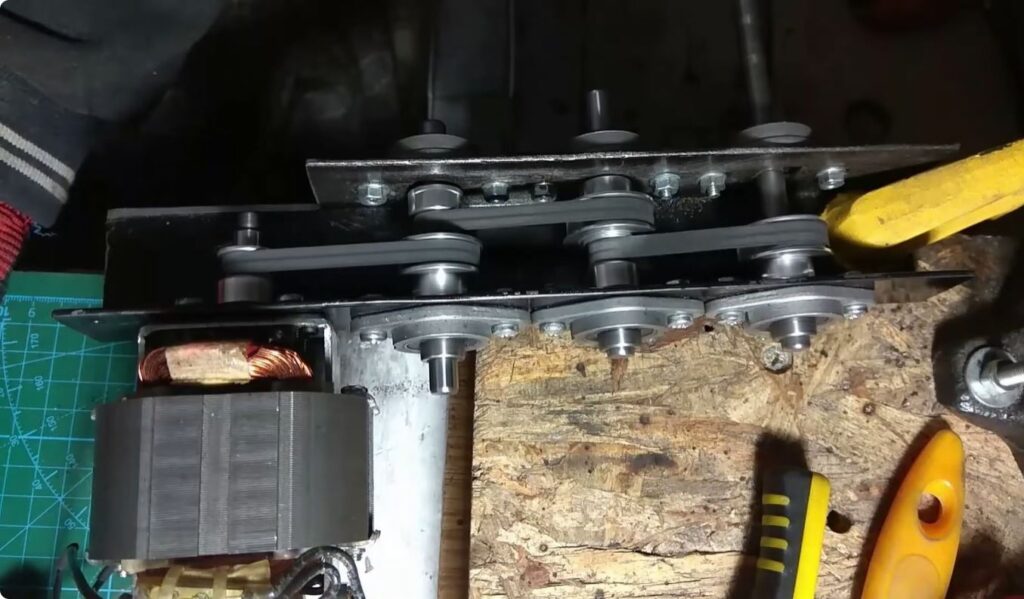

Building a DIY Gear System begins with securely mounting the fruit juicer motor to a stable frame. Once the motor is fixed in place, compatible gears must be aligned carefully to ensure efficient power transfer between the shafts.
Proper gear alignment is essential to prevent vibration and minimize wear on gear teeth during operation. Lubrication should also be applied to maintain smooth movement and reduce friction losses.
Application Possibilities
The DIY Gear System described here can be used in multiple workshop projects where controlled motion is required instead of direct high-speed rotation.
Some practical examples include:
- Small automation systems
- DIY lathe feed mechanisms
- Rotary positioning platforms
- Conveyor belt drives
- Motion control units
Each of these systems benefits from increased torque and reduced motor speed.
If you are interested in similar motor-powered workshop machines, you may also explore:
https://www.beykana.com/category/diy-tools/
Performance Optimization
Adjusting gear sizes in the assembly directly affects performance output. Larger driven gears result in higher torque but lower speed, while smaller ones allow faster rotation with less force.
This flexibility makes a DIY Gear System adaptable to a wide variety of mechanical projects.
By experimenting with different gear ratios, users can achieve the desired balance between speed and torque based on the operational needs of their build.
Mechanical Efficiency
One of the key advantages of creating a DIY Gear System from recycled components is improved mechanical efficiency without additional cost. Repurposed motors can become reliable drive units when paired with a suitable reduction mechanism.
The fruit juicer motor used in this build provides a stable input that ensures continuous performance even under moderate load conditions.
Sustainability Benefits
Using recycled appliance parts for mechanical projects reduces electronic waste and promotes sustainable workshop practices. A DIY Gear System eliminates the need for expensive commercial gearboxes and allows makers to construct custom drive solutions from readily available materials.
This approach not only reduces project cost but also enhances creativity in mechanical design.
Conclusion
A well-built DIY Gear System offers an efficient way to modify motor performance for torque-driven applications. By integrating gears with a fruit juicer motor, it becomes possible to create a compact and powerful mechanical transmission system suitable for various DIY machines.
This type of mechanical adaptation allows makers to improve equipment performance while maintaining affordability and environmental responsibility.
Additional Usage Areas and Customization Options
In many workshop environments, a gear-based drive mechanism can be extremely useful for applications that require controlled and steady movement. For example, integrating this type of reduction system into small fabrication machines allows smoother operation under mechanical load conditions. Instead of operating at uncontrolled high RPM levels, the output shaft can rotate at a more manageable speed suitable for cutting, shaping, or positioning tasks.
A DIY Gear System can also be implemented in projects that involve motion transfer between different machine components. Rotary tables, small conveyor units, automated feeders, and similar workshop equipment can benefit from torque-enhanced motor output. This type of setup ensures that the driving motor does not experience sudden stress caused by load resistance.
Another advantage of using a DIY Gear System in workshop automation is the ability to modify gear ratios according to project requirements. By changing gear diameters or adding an additional gear stage, users can fine-tune the performance of the entire transmission mechanism. This flexibility makes it easier to adapt the mechanical structure for different machine types without replacing the primary motor unit.
With proper mounting, lubrication, and alignment, the gear assembly can operate efficiently over long periods of time. As a result, the entire system becomes more stable and capable of handling repetitive mechanical tasks in DIY fabrication setups.
